Olivetti d-Copia 1600

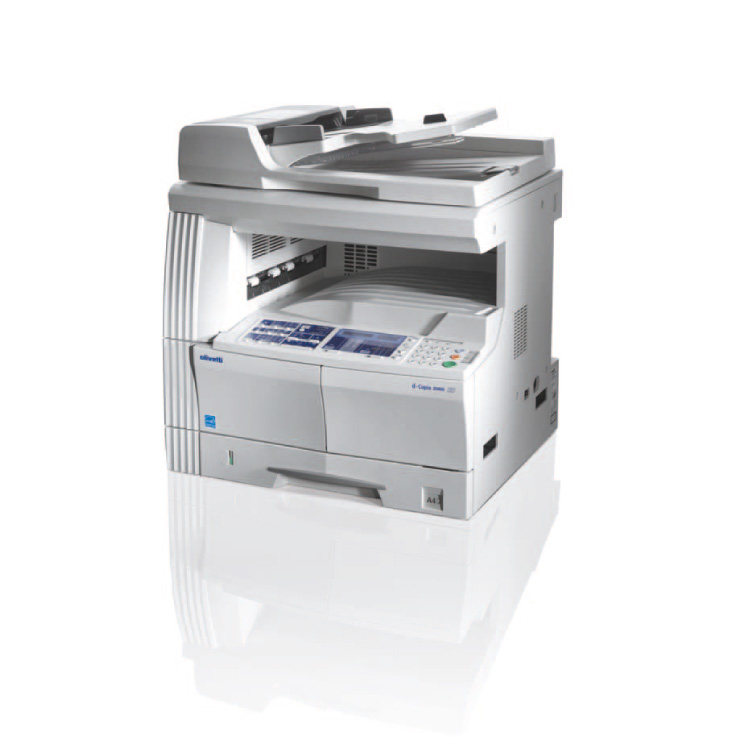

Olivetti d-Copia 1600 is an office b/w digital copier A3 format, the primary function of which is to copy, however, it can also be equipped with a printing module with GDI printing functionality.

Main features:

  • copy speed at 16 cpm in A4, same printing speed as the copy one
  • resolution of 600 x 600 dpi with 256 greyscale
  • standard 32 MB memory expandable up to 160 MB
  • modular system in terms of printing functionality and paper handling
  • optional duplex unit and document feeder
  • paper cassette capacity can be extended to up to 1,250 sheets
  • designed for extremely long hardware maintenance cycles
  • user-friendly control and maximum usability mainly in copying functions
BrandOlivetti
Categories,
Specifications – General
Maximum original size A3, Folio; sheets, books, 3-D objcts
Output size A3 – A5R, Folio
Technology laser and electrophotography
Output resolution 600 x 600 dpi (true); 256 grey-scale
Engine speed 16/8 ppm A4/A3
Paper capacity 300 pages drawer (64-105 g/m2) + 50 pages stack bypass (45-160g/m2); max. 1,250 pages
Output capacity 250 sheets face down
Document feeder capacity RADF 50 sheets A3~A5R (45-160g/m?); optional
Duplex unit capacity unlimited, paper size A3R~A5R (64-90 g/m2); (optional)
Machine weight Main body: about 41 kg
Dimensions (w x d x h) Main body: 552 × 574 × 502 mm
Noise level <64 dB operation; <40 dB stand-by
Power consumption 461 W operation; 104 W stand-by; 43 W sleeping
Specifications – Copying
Magnification 25% – 400% in 1% steps increments
Number of copies up to 999
First copy 5.9 sec or less (A4)
Warm-up time 20 sec or less
Image adjustments 256 grey-scale levels, Text + Photo, Text, Photo
Copy memory 32 MB, max. 160 MB
Specifications – Printing (optional)
Output resolution 600 x 600 dpi (true); 256 grey-scale levels
Print speed 16/8 ppm A4/A3
Processor ARM 946-S 150 MHz, FlexRisc
Print memory 32 MB
Standard interface USB 2.0
Network interface external Fast Ethernet 10/100 TX print server IB-110 (option)
Network protocols TCP/IP, EtherTalk a IPX/SPX (s IB-110)
Emulation none – GDI
Print compatibility Windows 98 SE, Me, 2000, XP
Options
Print System (X) Printer board
Platen cover covers original in operating
DP-410 Document feeder A3 ~ A5R, Folio
DU-410 duplex unit A3-A5R, Folio, Ledger-Statement-R, 60-80g/m2
PF-410 300-sheet capacity paper drawer, 60-105g/m2, A3~A5R (max. 3x)
CP 16H Desk high without paper drawer
CP 16L Desk low without paper drawer
Upgrade Memory 16, 32, 64 or 128 MB 100-pin DIMM (for copying)
IB-110 external network print server
Life of consumables
Toner 15,000 pages
Maintenance kit MK-410 150,000 pages
Preventive Maintenance each 150,000 pages
